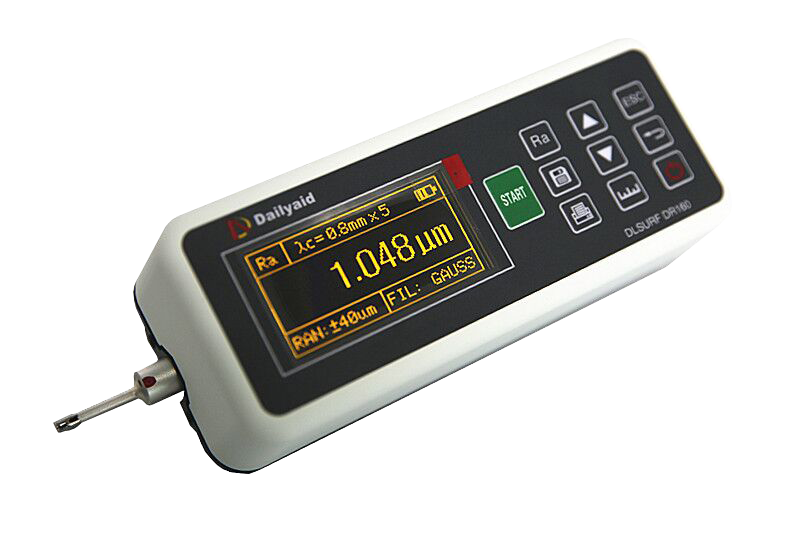

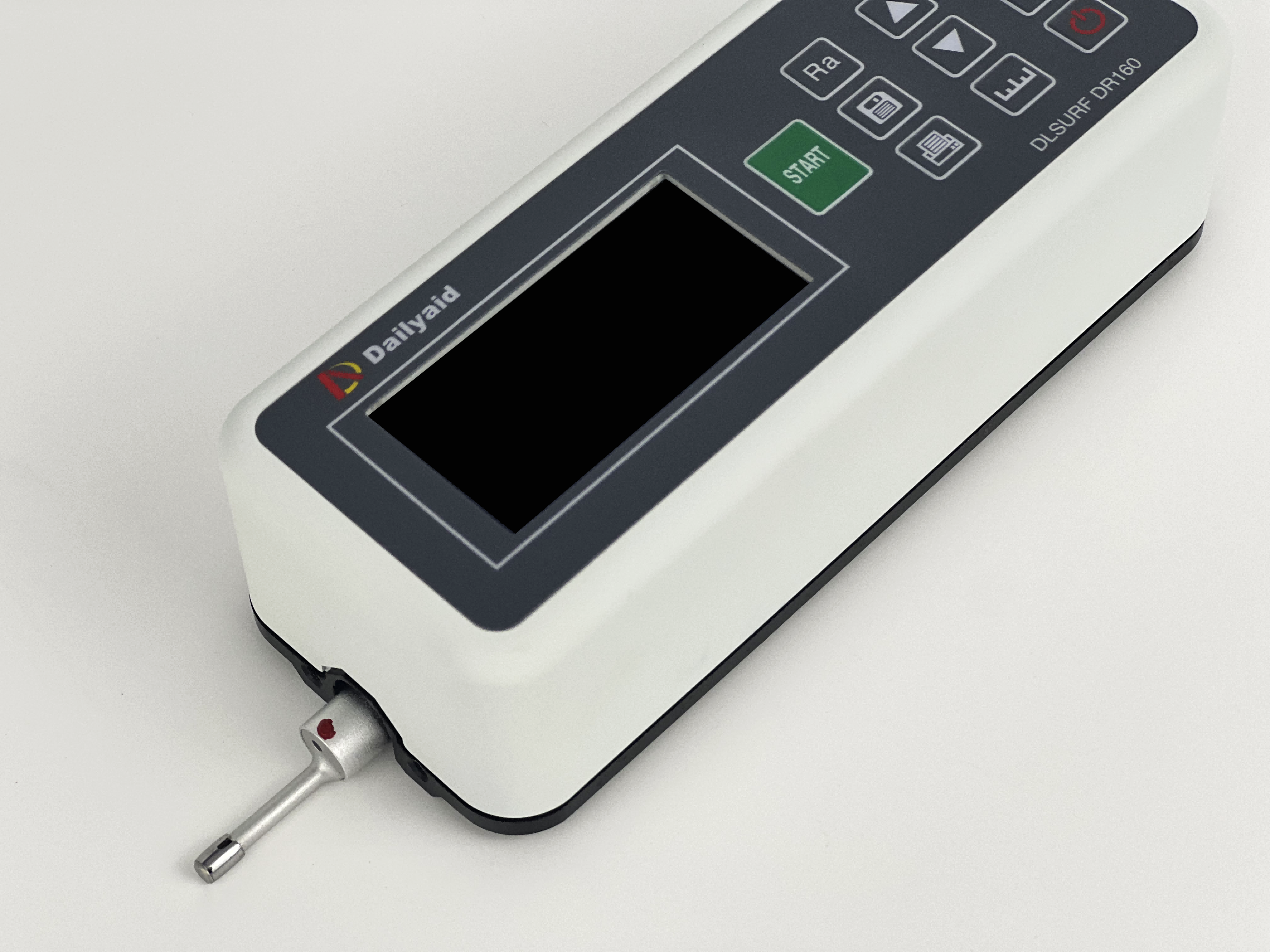

DR160 HIGH precision roughness meter is a hand-held instrument suitable for the production site environment and mobile measurement needs. It can measure the surface roughness of various machined parts, including plane, inclined plane, cylindrical surface, surface, holes, grooves and axles, etc. The corresponding parameters can be calculated according to the selected measurement conditions, and all measurement parameters and contour figures can be displayed on the display. Suitable for workshop verification station, laboratory, measuring room and other environment detection.

Product features

DR160 integrated design, small size, light weight, easy to use;
DSP chip control and data processing, fast speed, low power consumption;
Compatible with ISO, DIN, ANSI, JIS many national standards;
Continuous working time greater than 20 hours;
Large capacity data storage, can store 100 groups of original data and waveform;
Real-time clock setting and display, convenient data recording and storage;
Node functions: automatic sleep, automatic shutdown;
Reliable anti-dead motor circuit and software design;
Display measurement information, menu prompt information, error information, switch on and off and other prompt information;
Chinese/English language choice;
Can be connected to computers and printers;
Print all parameters or print any parameters set by the user;
Bluetooth function is optional;
Optional accessories: small hole/curved surface/deep groove sensor, measuring platform, sensor jacket, extended rod and other accessories;

The standard configuration

Main machine of roughness meter
Roughness sensor
Height adjusting support

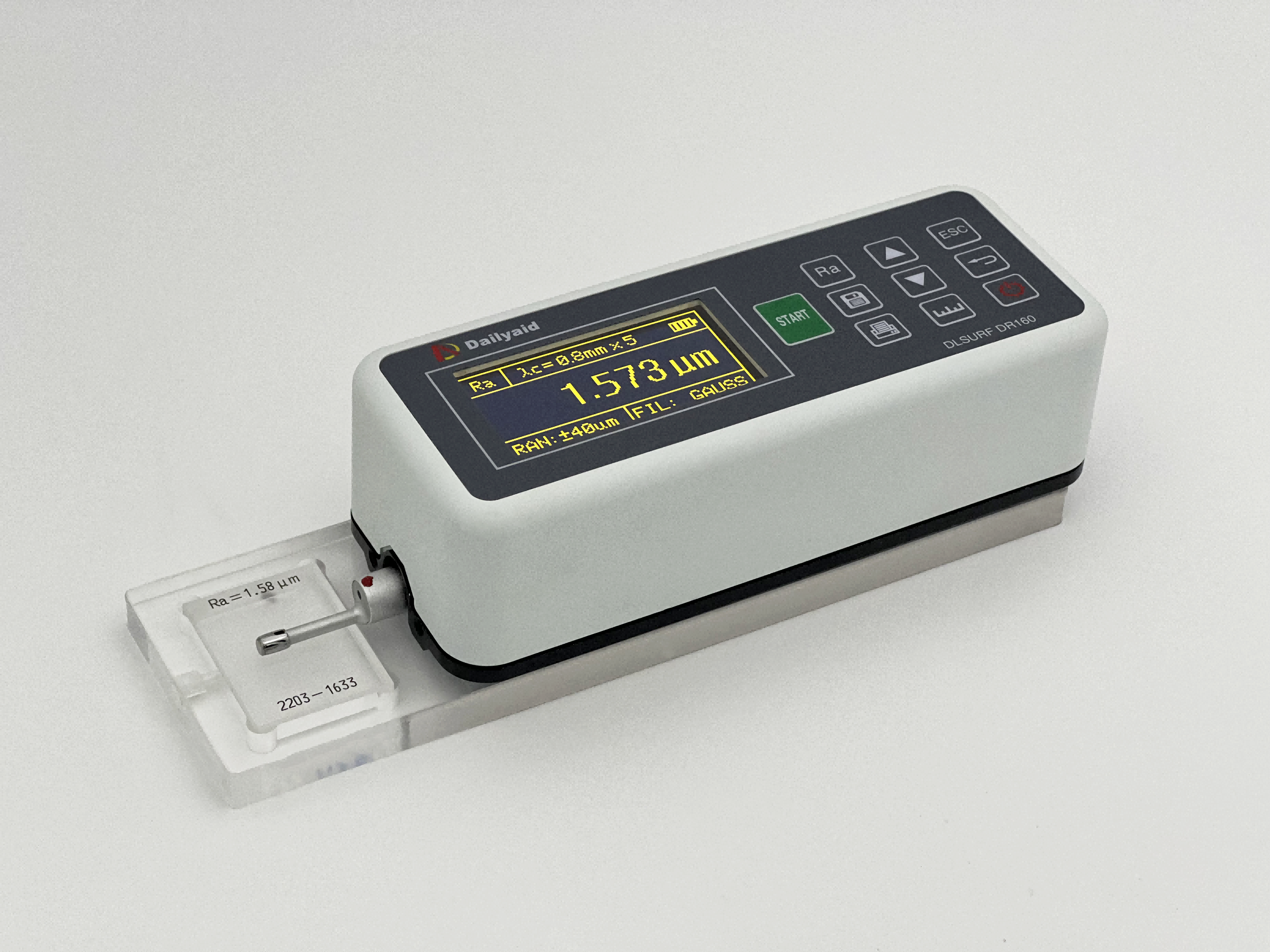

The calibration block
Block stents
The charger
The USB communication line
Instruction manual
Certificate of approval
Warranty card
Instrument box
Warranty period: 2 years
