Small, light, portable, ideal surface measuring equipment;
4.3" backlit large touch screen;
The picture can be rotated;
Easy to operate (like a smartphone);
Flexible application and selectable drive unit;
The Start test button is also the return home button to return directly to the start screen;
Direct access to favorites;
31 parameters: provide the same range of functions as laboratory instruments;
Can store data in such formats as TXT, X3P, CSV and PDF;
The most common evaluation parameters are in accordance with ISO/JIS standards and the parameter list;
Built-in removable roughness standard sample for standard probe PHT6-350;
Dynamic calibration function;
Selection criteria (DIN-ISO/JIS/ASME/MOTIF);
Automatic cut-off wavelength selection (patented design) ensures correct measurement results;
Independent sampling length and short cut-off wavelength are optional;
Asymmetric cross line peak count calculation setting;
P contour filter (Gaussian filter) in accordance with DIN EN ISO 166 10-21 (originally DIN EN ISO 11562), special filter in accordance with DIN EN ISO 13565-1, Is filter in accordance with DIN EN ISO 3274 (can not be activated) tolerance monitoring;
Set lock/secret protection;
Measurement date/time;
Memory can store about 500,000 results, 3900 contours and 1500 PDF files;
Connect to PC or microSD card through USB interface to transfer data;
MarConnect interface connects to PC through MarCom software;
The built-in rechargeable battery can perform 1,200 measurements;

The standard configuration

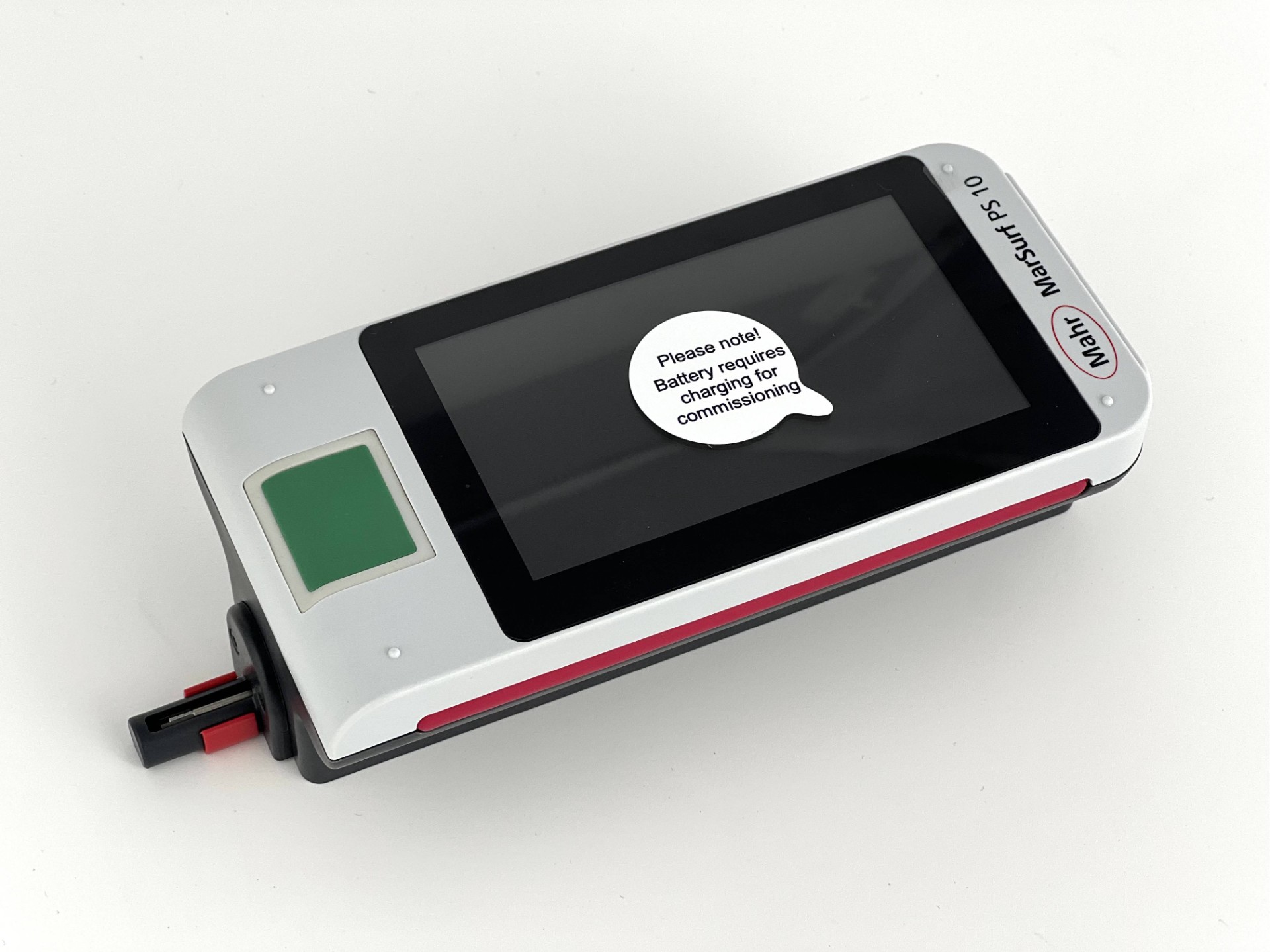

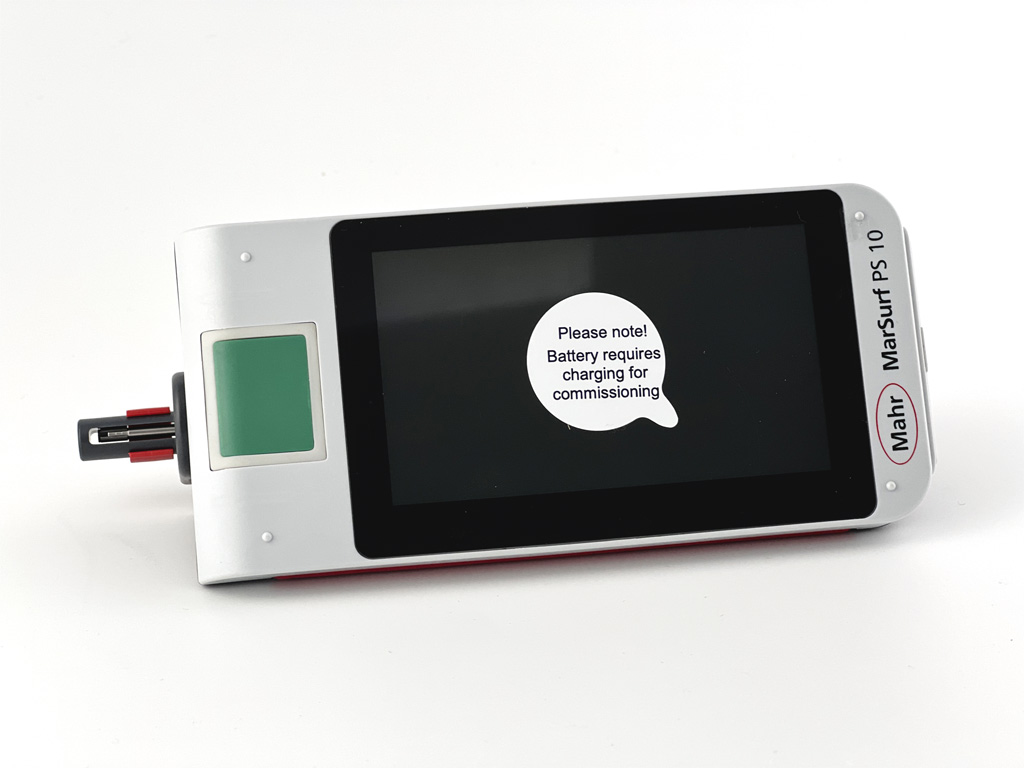

MarSurf PS 10 main body
Drive unit (removable)
1 standard probe PHT 6-350
Built-in battery
A removable roughness standard plate with Mahr calibration certificate is built into the body
Sensor protective sleeve
Main adapter and 3 power adapters
Operational guidelines for school official cites use
A carrying case with shoulder straps
USB cable
Drive unit cable extension cable
Height adjustment accessory (built-in)
